Week 04: Terrain

So, this week was an amalgamation of failed experiments to texture assets in Houdini. Any attempt to export some type of color map from Houdini failed. Ambient occlusion and Normal maps were successfully exported for the rock assets. They can be seen in the images below. Instead of creating terrain in Houdini, I decided to use World Creator because of limited time, and it is a powerful tool for procedurally generating terrain. I was not able to yet disperse my rock, tree, and grass assets across the terrain.

Textured terrain:

Untextured terrain:

Rocks with textures applied:

Wk 03 Grass and Trees

Creating grass and trees in Houdini was no simple task. Here are some renders, demonstrating the grass generation asset I created, and the types of variation of grass blades I am able to create with it:

The next three shots below show the nodes and the parameters that control the shape and form of the grass blade:

The grass generator took some trial and error, a few iterations in order to get an agreeable result. Here are a couple of examples of assets that were precursors to the grass asset.

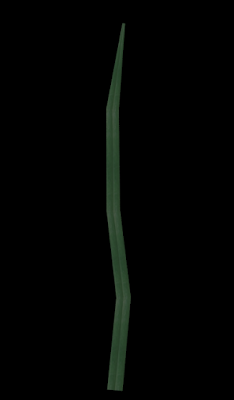

This grass blade looks nice, but has a problem.

It may be difficult to see in this shot, but the problem with this asset is that it is double sided, meaning it has 2x more polygons than necessary.

This is sort of a root/branch asset that is meant to be controlled by a curve, sticking out of a wall or the ground. This type of asset is too manual, and not ideal for populating an entire scene.

I was able to create a tree generator, which was by far the most complicated asset to create.

Here is a shot of the entire node network.

Here are close up views of the nodes:

Here are some additional examples of the variation that can be achieved with the asset:

I had an idea of a tree bridge asset, that could act as a bridge in the scene. I was able to acieve that with my tree generator asset:

I couldn't find a way to export procedural material color map textures from Houdini, so I  I took real life reference textures of rock and tree bark. The idea is to use those to generate geometry displacement in Houdini, then bake those as texture maps. I thought that it would be most interesting to use real-life textures for the assets where it would be noticeable. I can still use material builder and attribute VOPs to create cool geometry effects which can be baked out in texture maps, then hand-paint in Krita. So, for master's thesis project work, I may have to hand paint over normal/displacement maps in Krita.

Some of these are better than others, so texturing of the trees is still in progress. The grass texture was created in Krita, hand-painted.

Wk 02: Nature Scene: Rocks

The goal of this project is to procedurally create a 3d nature scene. The assets and tools will be created inside of Houdini, then exported into Unity using the Houdini Engine. This week , I focused on creating rock generation assets.

The first rock generation asset I created is a rock scatter asset.

The shape and surface of the rock is controlled by a couple of different noises mixed together in a VOP Attribute.

The rock scatter asset uses the paint node in order to utilize a painterly interface for controlling the scatter of the rocks. I may use this for other assets in the future of this project.

A single rock spawned by the 2nd rock scatter asset I created.

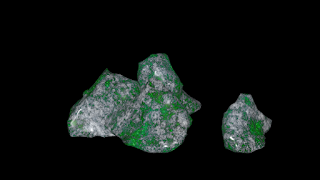

The solver spawns rocks in clusters, and the parameters can be altered to give way to different results. I used a material builder material to create the procedural moss and stone texture on these rocks.

The final result with displacement added.
